Machine Overview
The CVM series reflects our unwavering commitment to excellence, combining durability with optimised functionality. It's a sincere effort to surpass global quality standards while ensuring affordability.
In the world of machining, the CVM series embodies our core principle: enhancing Productivity. These machines are designed with heartfelt consideration for the end-users, putting their needs and satisfaction at the forefront.
Step into a world of precision and innovation with the CVM Series vertical machining centre. Our cutting-edge machine offers a range of exceptional features that not only elevate your machining capabilities but also enhance your entire experience
Additional Features
Stainless Steel Sill
Protector
Big Dual
Side Windows
Fully Enclosed
Guarding
Inbuilt Tool
Stronge Cabinet
1 Air and 3 Coolant
Nozzles
Copper Pipe
for Lubrication
Machine Specs
X-axis Travel:Â 700 mm
Y-axis Travel:Â 450 mm
Z-axis Travel:Â 500 mm
Table Size: 800×450 mm
Maximum Loading Capacity:Â 400 kg
Spindle Speed:Â 8,000 /Â 12,000Â rpm
Mitsubishi Motor Power:Â 7.5/11/15 KW
Spindle Taper:Â BBT 40
Rapid Traverse Rate (OPT):Â 36 m/min
Cutting Feed Rate:Â 10 m/min
Tool Nos. Capacity (OPT):Â 24 nos
X-axis Travel: 700 mm
Y-axis Travel: 450 mm
Z-axis Travel: 500 mm
Table Size: 800×450 mm
Maximum Loading Capacity: 400 kg
Spindle Speed: 8,000 / 12,000 rpm
Mitsubishi Motor Power: 7.5/11/15 KW
Spindle Taper:Â BBT 40
Rapid Traverse Rate (OPT): 36 m/min
Cutting Feed Rate:Â 10 m/min
Tool Nos. Capacity (OPT): 24 nos
X-axis Travel:Â 800 mm
Y-axis Travel: 500 mm
Z-axis Travel: 500 mm
Table Size: 1000×500 mm
Maximum Loading Capacity:Â 600 kg
Spindle Speed: 8,000 rpm
Mitsubishi Motor Power:Â 11/15/18.5 kW
Spindle Taper:Â BBT 40
Rapid Traverse Rate (OPT): 36(48) m/min
Cutting Feed Rate:Â 10 m/min
Tool Nos. Capacity (OPT): 30 nos
X-axis Travel: 1050 mm
Y-axis Travel: 520 mm
Z-axis Travel: 520 mm
Table Size: 1150×500 mm
Maximum Loading Capacity: 800 kg
Spindle Speed: 8,000 rpm
Mitsubishi Motor Power:Â 11/15/18.5 kW
Spindle Taper:Â BBT 40
Rapid Traverse Rate (OPT): 36 m/min
Cutting Feed Rate:Â 10 m/min
Tool Nos. Capacity (OPT): 30 nos
X-axis Travel: 1100 mm
Y-axis Travel: 650 mm
Z-axis Travel: 600 mm
Table Size: 1250×600 mm
Maximum Loading Capacity: 1000 kg
Spindle Speed: 8,000 / 6,000 rpm
Mitsubishi Motor Power:Â 11/15/18.5 KW
Spindle Taper:Â BBT 40 / BT 50
Rapid Traverse Rate (OPT): 30 m/min
Cutting Feed Rate:Â 10 m/min
Tool Nos. Capacity (OPT): 30 / 24 nos
X-axis Travel:Â 1300 mm
Y-axis Travel: 650 mm
Z-axis Travel: 600 mm
Table Size: 1450×600 mm
Maximum Loading Capacity: 1000 kg
Spindle Speed: 8,000 / 6,000 rpm
Mitsubishi Motor Power: 11/15/18.5 KW
Spindle Taper:Â BBT 40 / BT 50
Rapid Traverse Rate (OPT): 30 m/min
Cutting Feed Rate:Â 10 m/min
Tool Nos. Capacity (OPT): 30 / 24 nos
X-axis Travel: 1300 mm
Y-axis Travel: 700 mm
Z-axis Travel: 700 mm
Table Size: 1450×650 mm
Maximum Loading Capacity: 1500 kg
Spindle Speed: 8,000 / 6,000 rpm
Mitsubishi Motor Power: 11/15/18.5 KW
Spindle Taper:Â BBT 40 | BT 50
Rapid Traverse Rate (OPT): 30 m/min
Cutting Feed Rate:Â 10 m/min
Tool Nos. Capacity (OPT): 30 | 24Â nos
X-axis Travel:Â 1500 mm
Y-axis Travel: 700 mm
Z-axis Travel: 700 mm
Table Size: 1650×650 mm
Maximum Loading Capacity:Â 1500 kg
Spindle Speed:Â 8,000 / 6,000 rpm
Mitsubishi Motor Power: 11/15/18.5 KW
Spindle Taper:Â BBT 40 | BT 50
Rapid Traverse Rate (OPT): 24Â m/min
Cutting Feed Rate:Â 10 m/min
Tool Nos. Capacity (OPT): 30 | 24Â nos
X-axis Travel: 1600 mm
Y-axis Travel: 800 mm
Z-axis Travel: 800 mm
Table Size: 1750×800 mm
Maximum Loading Capacity: 2000 kg
Spindle Speed: 8,000 / 6,000 rpm
Mitsubishi Motor Power: 15/18.5 KW
Spindle Taper:Â BBT 40 / BT 50Â
Rapid Traverse Rate (OPT): 24 / 24 / 20 m/min
Cutting Feed Rate:Â 10 m/min
Tool Nos. Capacity (OPT): 24 / 24 nos
| W1 | H1 | H2 | H3 | Depth-FD | Depth-BD | |
|---|---|---|---|---|---|---|
| CVM-700 | 2215 | 2625 | 2025 | 670 | 2390 | 2730 |
| CVM-800 | 2430 | 2790 | 2160 | 630 | 2810 | 2510 |
| CVM-1050 | 2780 | 2900 | 2150 | 750 | 2500 | 2860 |
| CVM-1160 | 2910 | 2955 | 2265 | 690 | 2740 | 3050 |
| UM-400 | 2910 | 3155 | 2265 | 690 | 2740 | 3050 |
| CVM-1365 | 3440 | 3025 | 2325 | 700 | 2820 | N/A |
| CVM-1370 | 3495 | 3185 | 2335 | 850 | 3050 | N/A |
| CVM-1570 | 4000 | 3030 | 2180 | 850 | 2925 | N/A |
| CVM-1680 | 4970 | 3150 | 2315 | 800 | 3930 | N/A |
Torque Power Diagrams
Mitsubishi Controller
Fanuc Controller
Siemens Controller

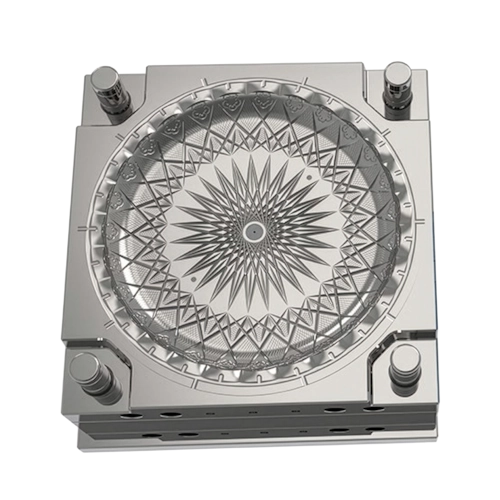

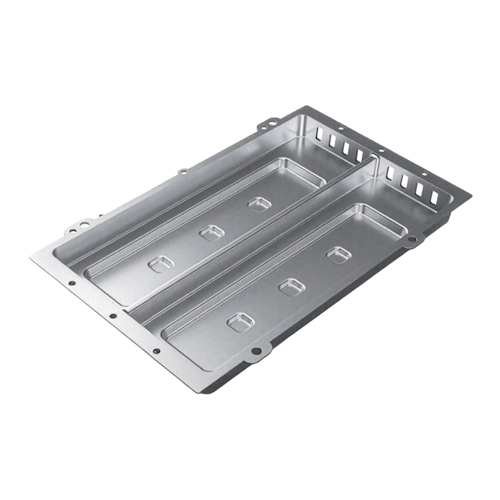

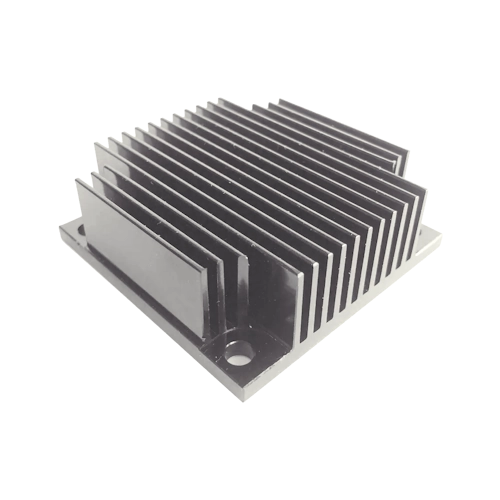

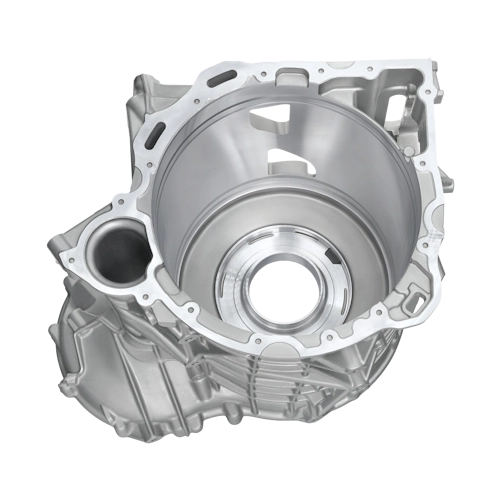

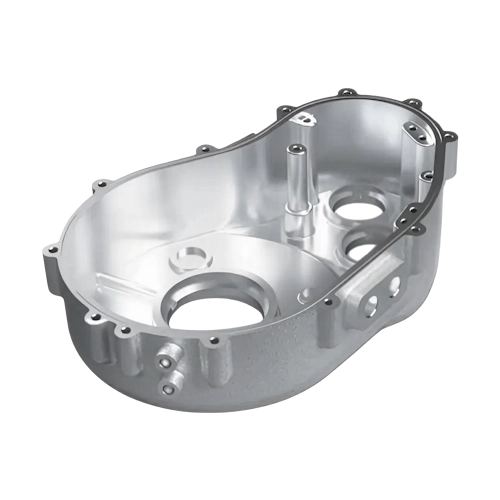

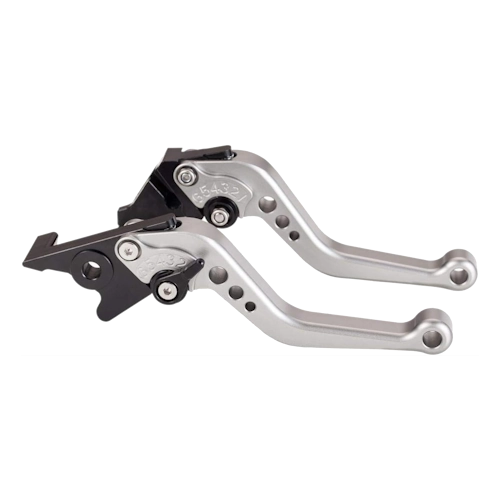

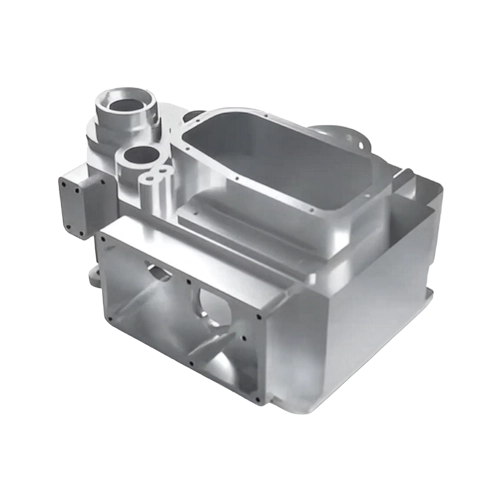

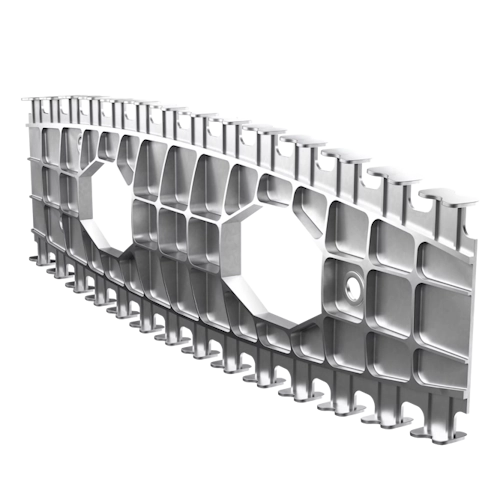

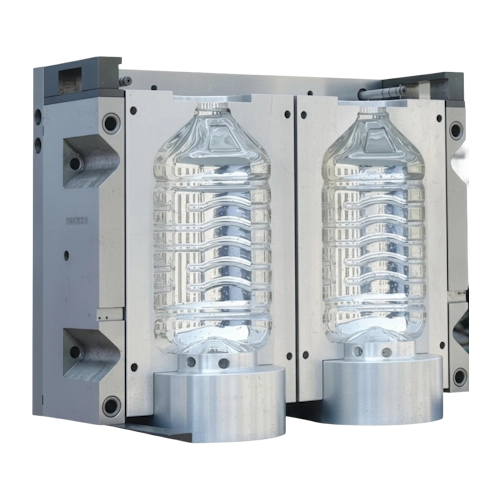

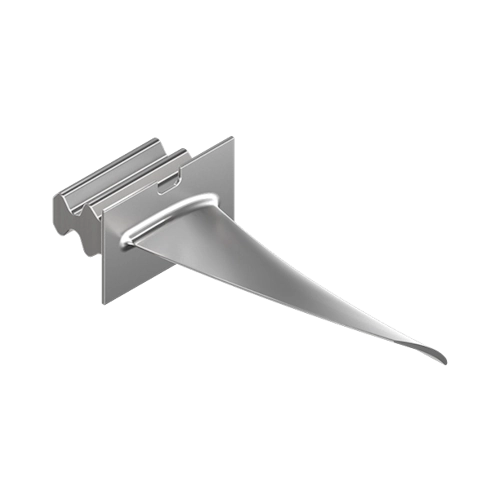

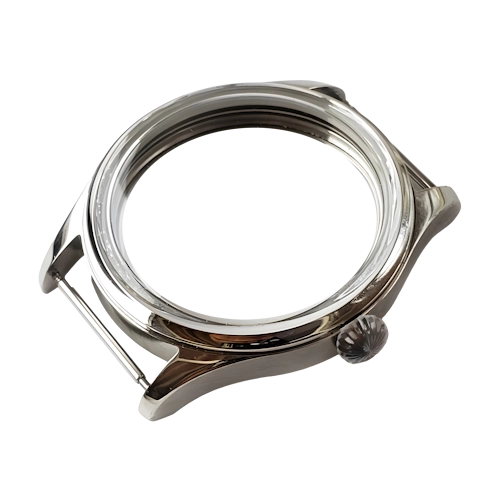

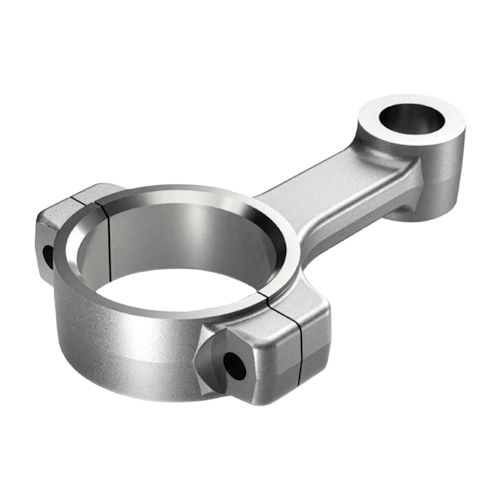

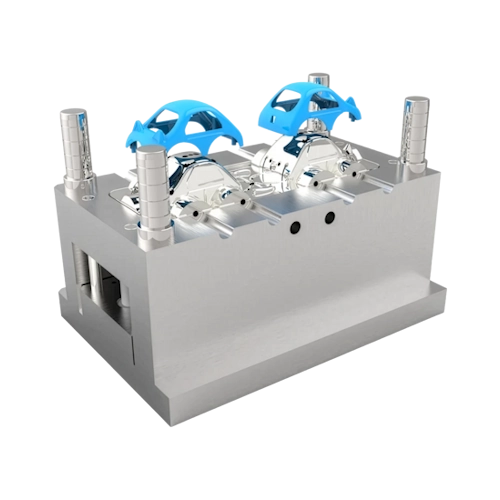

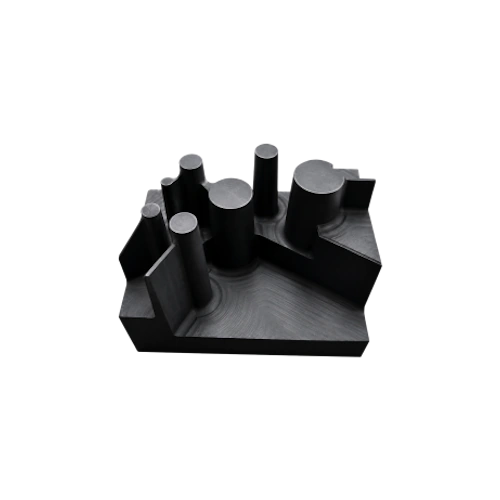

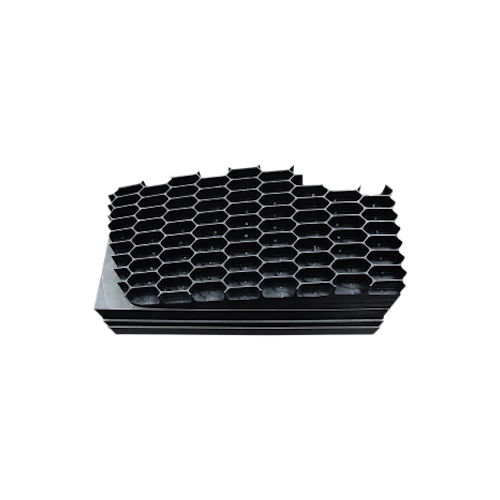

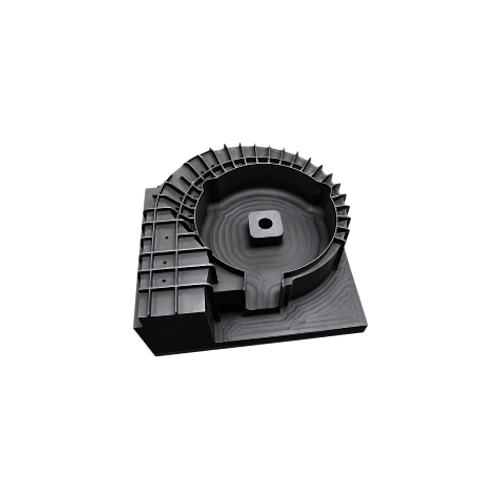

Components machined by CVM Series
Structural Architecture
WIDE A-SHAPED COLUMN
The extra-wide base of the column provides superior stability and effectively absorbs cutting forces, preventing any deflection and leading to improved cutting dynamics.
GOLDEN TRIANGULAR FRAME DESIGN
By ensuring maximum bed width, we optimize kinematics for superior performance. This design also lowers the center of gravity, enhancing stability during cutting, resulting in a chatter-free surface finish and prolonged tool life.
EXTENDED HEADSTOCK GUIDES
The extended A:B ratio not only allows for larger components on the machine table but also enhances headstock rigidity during rapid high-feed cutting. This rigidity safeguards spindle accuracy by preventing headstock sag, ensuring precision in machining operations.
HIGH QUALITY IMPORTED SPINDLE
Our Cartridge Type Spindle delivers exceptional performance, minimizing run-out while providing impressive cutting torque. Every spindle in our lineup undergoes rigorous dynamic balancing and thermal deformation testing, ensuring optimal precision and reliability in every machining operation.
MACHINING STABILITY ENSURED
Our machines are distinguished by the extraordinary power of our signature ribs, the cornerstone of strength and quality in our construction. These ribs are strategically positioned to fortify our machines, elevating their structural integrity and amplifying overall robustness.
For heavy-duty cutting tasks, our ribs are the secret to success. They stand out in enhancing torsional rigidity, expertly reducing vibrations, and virtually eliminating deformation. The outcome is a level of machining precision and reliability that’s second to none – a testament to the enduring quality and unwavering strength of our ribs. Place your trust in the bedrock of excellence; rely on our ribs to deliver.
CVM Next - Gen
A radiant new hue with enhanced performance,
features and user experience launching soon for a global market.
Coming Soon...
BOOST YOUR PROFITABILITY BY
ACHIEVING THE MAXIMUM WITH EASE
It focuses on customised dashboards and tools that help the operator to simplify his daily activity. The overall feature and package can reduce the time lost due to the complexity of the controller GUI; as a result, Zenez can significantly increase the machine output and profitability. • 10.4-inch display or large 15-inch display.
- 10.4-inch display or large 15-inch display
- Multi-touch User Interface
- Fully functional vertical and horizontal soft-keys for non-touch usage
- Crystal Type
- Enhanced hardware to ensure reliability
The Home Screen
Status View
Program Status
Show Tool Life Status
Active Machining Condition
Port Count vs Total Required
ZENEZ Menu
Menu Pre-Machining APP
During Machining APP
Post Machining APP
Diagnosis APP
Maintenance APP
Tool Manager APP
Axis Load Meter
CNC View
Axis Feed Rote
Spindle rpm Program Name
Sequence Number (N)
Block Number (B)
Progrom Buffer
Program Position
Spindle Load Stat
Maintenance Alert
An alert shows up if maintenance tasks are pending or one of the following is not normal:
Lubrication Level
Air Pressure Coolant Level
Tool Clamp
Scroll
Scroll in lists - Tool and Work offset list, Program, Gcode List Parameter.
Tap
Tap to move the cursor or navigate through the menus.
Pinch
Zoom in and out of graphic content during simulation mode.
QUICK SETUP
Magazine View
Users can assign large tools, fixed tools. locked tools, and maximum and minimum loads with tool type. Load Teaching is a value-added feature.
QUICK SETUP
Tool Manager
User Can assign Large Tools, Fixed Tools. Locked Tools. Maximum and Minimum Load with Tool Type. Load Teaching is a value added feature. *LT-Lorge Tool | FT - Fixed Tool | Wo5-Tool without Spindle Rotation
ADVANCE CONTROL
Machining Condition Selection
Machining
Condition Selection -
Settings Level 1-9 offers the user
control over the servo tuning. 1-9 represents tuning presets calibrated by the Cosmos and Mitsubishi Japan tech team to offer users the servo tuning control in a more understandable manner to maximise their profits by gaining customised control over roughing, semi-roughing, and finishing parameters.
"Can be activated by G-Code G331-339-or Manually. This option can be password
protected for restricted access.
ADVANCE CONTROL
Downtime Analysis
Downtime (DTE) Entry
Popup Whenever machine stops, the DTE pops up for classification for
interruption in machining
Downtime Analysis Report
Complete report on why machine was idle. Now you know where the issue is.
All-in-One Digital Data Monitoring Solution for Manufacturing Industries
digiFAC Features
Dashboard Monitoring
- Live information of the entire factory.
- Categorise machines (Unit-wise).
- View regular utilisation of the machine.
Program Transfer
- Upload programs from computer to machine remotely.
- Download programs and edit them from anywhere around the globe.
Alarm Analysis
- Alarm history by code/machine.
- Time and duration of all alarms generated by a separate machine.
Tool Cutting Time Informationt
- No more unidentified dry-runs.
- Program path optimisation in-sight.
- Tool usage clarity.
- Shorter cycle-times (if modified).
- Eliminate NVA air time and improve your process.
All-in-One Dashboard
- Overview of all data of one machine on one screen.
- Find out the machine's status right away.
- One machine's information is displayed on a single screen.
Production Information (Utilisation)
- Detailed production information report: An automated daily production report.
- All reports are available in Excel format.
Downtime Analysis
- See total machine downtime.
- Monitor downtime and the reasons for it (Macro Downtime Feature).
- Focus and easily get the classified major losses/downtimes and work on optimisation .
Email Alerts
- Set a time for machines' idle condition and receive or get alarm notifications via email.
- Management Reporting: Receive daily production reports and downtime analysis reports by email on a daily basis.
