Dynamill Series

Machine Specifications

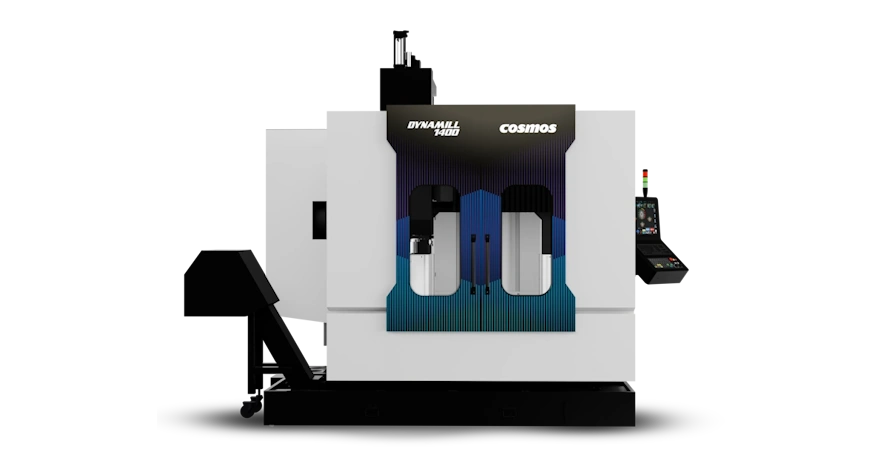

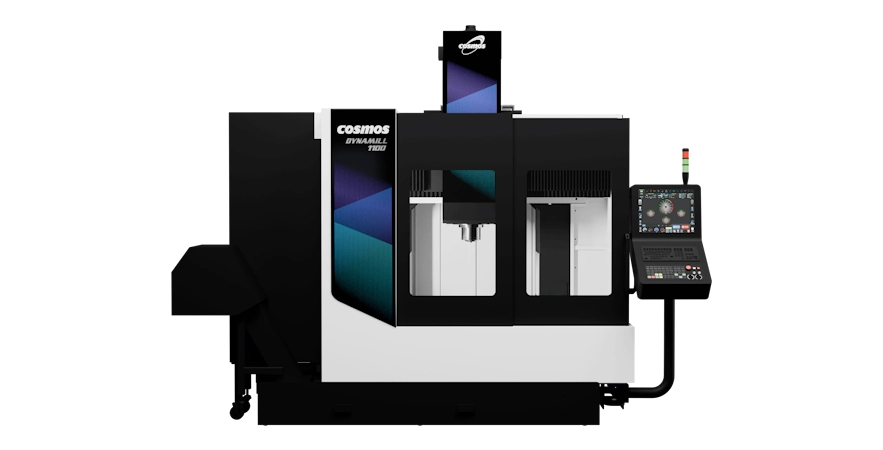

Items	Unit	DM 1100 Core	DM 1100 Plus	DM 1100 Pro	DM 1400 Core	DM 1400 Plus	DM 1400 Pro
Travel
X axis	mm	1100			1400
Y axis	mm	700			1100
Z axis	mm	600			600
Distance Between Columns	mm	1100			1100
Distance from Spindle Nose to Table	mm	150-750			150-750
Table
Dimension	mm	1050 x 700			1600×1000
Max. Load	kg	1000			3000
T-slot (width x pitch x number)	mm	181255			181407
Spindle
Spindle Type (Standard)	–	Direct-Drive		Built In	Direct-Drive		Built In
Spindle Speed	rpm	12000	15000	18000	12000	15000	18000
Mitsubishi Motor Power	kW	11/15/18.5 kW		19/33 kW	11/15/18.5 kW		19/33 kW
Spindle Taper	–	BBT40	HSK A63		BBT40	HSK A63
Spindle Oil Chiller	–	✓			✓
Water Chiller	–	–	–	✓	–	–	✓
Length Tool Setter	–	✓			✓
Linear Scale	–	–	✓		–	✓
Feed Rate
Rapid Traverse (X / Y / Z)	m/min	32 m/min			32 m/min
Cutting Feed Rate (X / Y / Z)	m/min	20 m/min			20 m/min
ATC
ATC Type	–	Twin Arm			Twin Arm
Magazine Capacity	nos	24			24
Max. Tool Diameter / Next Pocket Empty	mm	80/150			80/150
Max. Tool Length	mm	300			300
Max. Tool Weight	kg	8			8
Tool Change Time (Tool to Tool)	Sec.	2.0			2.0
Miscellaneous
Machine Weight	kg	~7100			~12000
Power Requirement	kVA	35			35
Power Supply	–	415V/3 Phase, 50-60Hz			415V/3 Phase, 50-60Hz

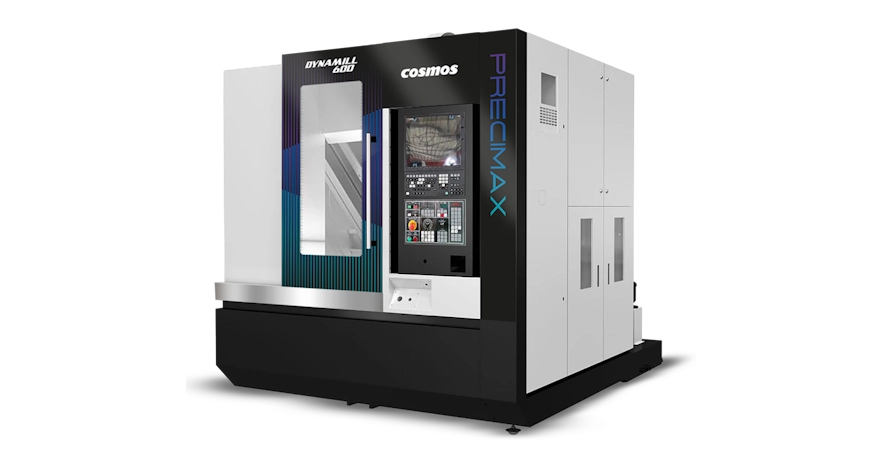

Items	Unit	DM Pro Precimax
Control
CNC controller	–	Mitsubishi/Fanuc
Travel
X × Y × Z axis	mm	600 / 600 / 320
Table top surface to spindle nose	mm	80~400
Table
Table work surface area (X-axis × Y-axis)	mm	600 × 600
T-Slots (Size × Number × Centre)	–	18 × 4 × 150
Max. work piece weight	kg	500
Feed Rate
Rapid traverse rate X/Y/Z	m/min	20 / 20 / 20
Cutting feed rate	mm	1-15000
Minimum input increment	mm	0.001
Spindle
Spindle holder	–	HSK-E40
Spindle motor	kW	4.6
Spindle speed	rpm	24000 / 30000
Cooling lubrication	–	Oil / Grease
ATC
Tool magazine capacity	T	24
Max. tool weight	kg	1.5
Max. tool length	mm	150
Tool selection	–	Armless
Others
Power	kVA	20
Coolant tank capacity	L	250
Net weight	kg	6500
Floor space	mm	2200 × 2700 × 2650
