Megamill Series

M 2212

M 2712

M 3212

M 2215

M 2715

M 3215

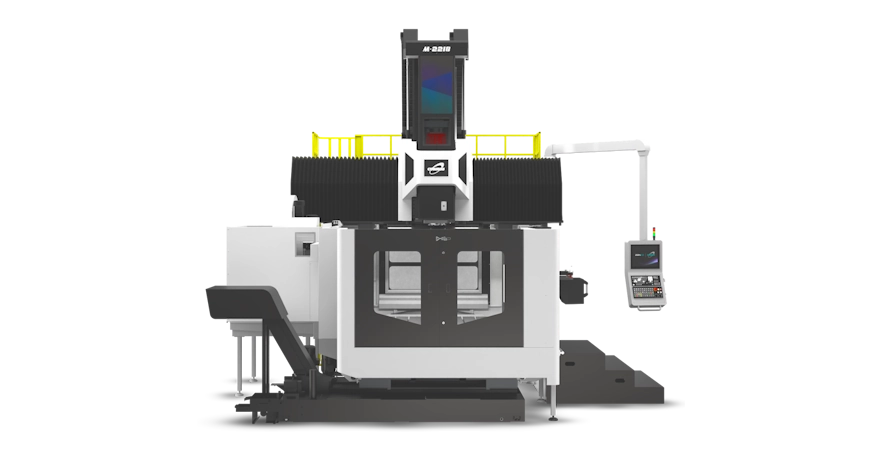

M 2218

M 3218

M 4218

M 3223

M 4223

Table size: 4000×2100 mm

Maximum load: 13 tons

X axis travel: 4200 mm

Y axis travel: 2300 mm

Z axis travel: 1000 mm

Spindle motor (Mitsubishi): 22/26 kW

Speed: 6,000 (8,000, 10,000) rpm

Taper: BBT-50

Rapid rate (Mitsubishi): 15/15/12 m/min

Cutting feed rate: 1 – 10,000 mm/min

Standard Accessories

Mitsubishi/Fanuc with Crystal Keys for MOP
Spindle Speed – 6000 rpm with Oil Chiller
X & Y with Roller LM Guideways
Z Axis with Roller LM Guideways (M-2212 – 3215)
Z Axis with Box Guideways (M-2218 – 5223)
24 Tools Twin ARM Type ATC
Mobile MPG (Handheld wired unit)
Coolant Splash Guard (Top Open)
Two Chip Screw and One Slat Type Chip Conveyor with Bucket
Air Conditioner for Electrical Cabinet
Automatic Lubrication Unit
Coolant System
Spindle Air Blast
Work & Tower Lamp
Step Down Transformer
Auto Power Off
Maintenance Ladder

Optional Accessories

Spindle Speed – 8000/10000 rpm
32/40 Tools ATC
Spindle Taper BBT 40 from M-2212 to M-3215
Linear Scales for X, Y, & Z Axes
Coolant Through Spindle 20 Bar Pressure
Tool Length Measurement System
Work Piece Measurement System
Manual 90° Angle Head
Semi-Automatic 90° Angle Head
Auto 90° Angle Head
500 mm Extended Beam (Possible in some models only)*
(Recommended with 90° Angle Head)
4th Axis Rotary Tables
Column Riser 200/300 mm
Enclosed Guarding (Top Closed)
Door Interlock for safety
Zenμ – AI base accuracy enhancement feature (thermal compensation)
Siemens, Heidenhain & Fagor controllers are also available on request

Note

The machines from 2212 to 3215 are offered with three headstock options and with the roller LM guideways to suit different machining requirements:
• Direct Drive (DDS) Head
• Inline Gearbox Head
• Belt Drive Head

Note: The models from 2218 to 4223 are equipped with box guideways on the Z axis.

Note: Specifications and features are subject to change without prior notice. Please refer to the offer document, as it has precedence.

Table size: 2500×1100 mm

Maximum load: 6 tons

X axis travel: 2700 mm

Y axis travel: 1200 mm

Z axis travel: 800 mm

Spindle motor (Mitsubishi): 15/18.5 kW

Speed: 6,000 (8,000, 10,000) rpm

Taper: BBT-50

Rapid rate (Mitsubishi): 20/20/15 m/min

Cutting feed rate: 1 – 10,000 mm/min

Standard Accessories

Mitsubishi/Fanuc with Crystal Keys for MOP
Spindle Speed – 6000 rpm with Oil Chiller
X & Y with Roller LM Guideways
Z Axis with Roller LM Guideways (M-2212 – 3215)
Z Axis with Box Guideways (M-2218 – 5223)
24 Tools Twin ARM Type ATC
Mobile MPG (Handheld wired unit)
Coolant Splash Guard (Top Open)
Two Chip Screw and One Slat Type Chip Conveyor with Bucket
Air Conditioner for Electrical Cabinet
Automatic Lubrication Unit
Coolant System
Spindle Air Blast
Work & Tower Lamp
Step Down Transformer
Auto Power Off
Maintenance Ladder

Optional Accessories

Spindle Speed – 8000/10000 rpm
32/40 Tools ATC
Spindle Taper BBT 40 from M-2212 to M-3215
Linear Scales for X, Y, & Z Axes
Coolant Through Spindle 20 Bar Pressure
Tool Length Measurement System
Work Piece Measurement System
Manual 90° Angle Head
Semi-Automatic 90° Angle Head
Auto 90° Angle Head
500 mm Extended Beam (Possible in some models only)*
(Recommended with 90° Angle Head)
4th Axis Rotary Tables
Column Riser 200/300 mm
Enclosed Guarding (Top Closed)
Door Interlock for safety
Zenμ – AI base accuracy enhancement feature (thermal compensation)
Siemens, Heidenhain & Fagor controllers are also available on request

Note

Note: The models from 2218 to 4223 are equipped with box guideways on the Z axis.

Note: Specifications and features are subject to change without prior notice. Please refer to the offer document, as it has precedence.

Table size: 3000×1100 mm

Maximum load: 8 tons

X axis travel: 3200 mm

Y axis travel: 1200 mm

Z axis travel: 800 mm

Spindle motor (Mitsubishi): 15/18.5 kW

Speed: 6,000 (8,000, 10,000) rpm

Taper: BBT-50

Rapid rate (Mitsubishi): 20/20/15 m/min

Cutting feed rate: 1 – 10,000 mm/min

Standard Accessories

Mitsubishi/Fanuc with Crystal Keys for MOP
Spindle Speed – 6000 rpm with Oil Chiller
X & Y with Roller LM Guideways
Z Axis with Roller LM Guideways (M-2212 – 3215)
Z Axis with Box Guideways (M-2218 – 5223)
24 Tools Twin ARM Type ATC
Mobile MPG (Handheld wired unit)
Coolant Splash Guard (Top Open)
Two Chip Screw and One Slat Type Chip Conveyor with Bucket
Air Conditioner for Electrical Cabinet
Automatic Lubrication Unit
Coolant System
Spindle Air Blast
Work & Tower Lamp
Step Down Transformer
Auto Power Off
Maintenance Ladder

Optional Accessories

Spindle Speed – 8000/10000 rpm
32/40 Tools ATC
Spindle Taper BBT 40 from M-2212 to M-3215
Linear Scales for X, Y, & Z Axes
Coolant Through Spindle 20 Bar Pressure
Tool Length Measurement System
Work Piece Measurement System
Manual 90° Angle Head
Semi-Automatic 90° Angle Head
Auto 90° Angle Head
500 mm Extended Beam (Possible in some models only)*
(Recommended with 90° Angle Head)
4th Axis Rotary Tables
Column Riser 200/300 mm
Enclosed Guarding (Top Closed)
Door Interlock for safety
Zenμ – AI base accuracy enhancement feature (thermal compensation)
Siemens, Heidenhain & Fagor controllers are also available on request

Note

Note: The models from 2218 to 4223 are equipped with box guideways on the Z axis.

Note: Specifications and features are subject to change without prior notice. Please refer to the offer document, as it has precedence.

Table size: 2000×1300 mm

Maximum load: 4 tons

X axis travel: 2200 mm

Y axis travel: 1500 mm

Z axis travel: 800 mm

Spindle motor (Mitsubishi): 15/18.5 kW

Speed: 6,000 (8,000, 10,000) rpm

Taper: BBT-50

Rapid rate (Mitsubishi): 20/20/15 m/min

Cutting feed rate: 1 – 10,000 mm/min

Standard Accessories

Mitsubishi/Fanuc with Crystal Keys for MOP
Spindle Speed – 6000 rpm with Oil Chiller
X & Y with Roller LM Guideways
Z Axis with Roller LM Guideways (M-2212 – 3215)
Z Axis with Box Guideways (M-2218 – 5223)
24 Tools Twin ARM Type ATC
Mobile MPG (Handheld wired unit)
Coolant Splash Guard (Top Open)
Two Chip Screw and One Slat Type Chip Conveyor with Bucket
Air Conditioner for Electrical Cabinet
Automatic Lubrication Unit
Coolant System
Spindle Air Blast
Work & Tower Lamp
Step Down Transformer
Auto Power Off
Maintenance Ladder

Optional Accessories

Spindle Speed – 8000/10000 rpm
32/40 Tools ATC
Spindle Taper BBT 40 from M-2212 to M-3215
Linear Scales for X, Y, & Z Axes
Coolant Through Spindle 20 Bar Pressure
Tool Length Measurement System
Work Piece Measurement System
Manual 90° Angle Head
Semi-Automatic 90° Angle Head
Auto 90° Angle Head
500 mm Extended Beam (Possible in some models only)*
(Recommended with 90° Angle Head)
4th Axis Rotary Tables
Column Riser 200/300 mm
Enclosed Guarding (Top Closed)
Door Interlock for safety
Zenμ – AI base accuracy enhancement feature (thermal compensation)
Siemens, Heidenhain & Fagor controllers are also available on request

Note

Note: The models from 2218 to 4223 are equipped with box guideways on the Z axis.

Note: Specifications and features are subject to change without prior notice. Please refer to the offer document, as it has precedence.

Table size: 2500×1300 mm

Maximum load: 6 tons

X axis travel: 2700 mm

Y axis travel: 1500 mm

Z axis travel: 800 mm

Spindle motor (Mitsubishi): 15/18.5 kW

Speed: 6,000 (8,000, 10,000) rpm

Taper: BBT-50

Rapid rate (Mitsubishi): 20/20/15 m/min

Cutting feed rate: 1 – 10,000 mm/min

Standard Accessories

Mitsubishi/Fanuc with Crystal Keys for MOP
Spindle Speed – 6000 rpm with Oil Chiller
X & Y with Roller LM Guideways
Z Axis with Roller LM Guideways (M-2212 – 3215)
Z Axis with Box Guideways (M-2218 – 5223)
24 Tools Twin ARM Type ATC
Mobile MPG (Handheld wired unit)
Coolant Splash Guard (Top Open)
Two Chip Screw and One Slat Type Chip Conveyor with Bucket
Air Conditioner for Electrical Cabinet
Automatic Lubrication Unit
Coolant System
Spindle Air Blast
Work & Tower Lamp
Step Down Transformer
Auto Power Off
Maintenance Ladder

Optional Accessories

Spindle Speed – 8000/10000 rpm
32/40 Tools ATC
Spindle Taper BBT 40 from M-2212 to M-3215
Linear Scales for X, Y, & Z Axes
Coolant Through Spindle 20 Bar Pressure
Tool Length Measurement System
Work Piece Measurement System
Manual 90° Angle Head
Semi-Automatic 90° Angle Head
Auto 90° Angle Head
500 mm Extended Beam (Possible in some models only)*
(Recommended with 90° Angle Head)
4th Axis Rotary Tables
Column Riser 200/300 mm
Enclosed Guarding (Top Closed)
Door Interlock for safety
Zenμ – AI base accuracy enhancement feature (thermal compensation)
Siemens, Heidenhain & Fagor controllers are also available on request

Note

Note: The models from 2218 to 4223 are equipped with box guideways on the Z axis.

Note: Specifications and features are subject to change without prior notice. Please refer to the offer document, as it has precedence.

Table size: 3000×1300 mm

Maximum load: 8 tons

X axis travel: 3200 mm

Y axis travel: 1500 mm

Z axis travel: 800 mm

Spindle motor (Mitsubishi): 15/18.5 kW

Speed: 6,000 (8,000, 10,000) rpm

Taper: BBT-50

Rapid rate (Mitsubishi): 20/20/15 m/min

Cutting feed rate: 1 – 10,000 mm/min

Standard Accessories

Mitsubishi/Fanuc with Crystal Keys for MOP
Spindle Speed – 6000 rpm with Oil Chiller
X & Y with Roller LM Guideways
Z Axis with Roller LM Guideways (M-2212 – 3215)
Z Axis with Box Guideways (M-2218 – 5223)
24 Tools Twin ARM Type ATC
Mobile MPG (Handheld wired unit)
Coolant Splash Guard (Top Open)
Two Chip Screw and One Slat Type Chip Conveyor with Bucket
Air Conditioner for Electrical Cabinet
Automatic Lubrication Unit
Coolant System
Spindle Air Blast
Work & Tower Lamp
Step Down Transformer
Auto Power Off
Maintenance Ladder

Optional Accessories

Spindle Speed – 8000/10000 rpm
32/40 Tools ATC
Spindle Taper BBT 40 from M-2212 to M-3215
Linear Scales for X, Y, & Z Axes
Coolant Through Spindle 20 Bar Pressure
Tool Length Measurement System
Work Piece Measurement System
Manual 90° Angle Head
Semi-Automatic 90° Angle Head
Auto 90° Angle Head
500 mm Extended Beam (Possible in some models only)*
(Recommended with 90° Angle Head)
4th Axis Rotary Tables
Column Riser 200/300 mm
Enclosed Guarding (Top Closed)
Door Interlock for safety
Zenμ – AI base accuracy enhancement feature (thermal compensation)
Siemens, Heidenhain & Fagor controllers are also available on request

Note

Note: The models from 2218 to 4223 are equipped with box guideways on the Z axis.

Note: Specifications and features are subject to change without prior notice. Please refer to the offer document, as it has precedence.

Table size: 2000×1500 mm

Maximum load: 8 tons

X axis travel: 2200 mm

Y axis travel: 1800 mm

Z axis travel: 1000 mm

Spindle motor (Mitsubishi): 22/26 kW

Speed: 6,000 (8,000, 10,000) rpm

Taper: BBT-50

Rapid rate (Mitsubishi): 15/15/12 m/min

Cutting feed rate: 1 – 10,000 mm/min

Standard Accessories

Mitsubishi/Fanuc with Crystal Keys for MOP
Spindle Speed – 6000 rpm with Oil Chiller
X & Y with Roller LM Guideways
Z Axis with Roller LM Guideways (M-2212 – 3215)
Z Axis with Box Guideways (M-2218 – 5223)
24 Tools Twin ARM Type ATC
Mobile MPG (Handheld wired unit)
Coolant Splash Guard (Top Open)
Two Chip Screw and One Slat Type Chip Conveyor with Bucket
Air Conditioner for Electrical Cabinet
Automatic Lubrication Unit
Coolant System
Spindle Air Blast
Work & Tower Lamp
Step Down Transformer
Auto Power Off
Maintenance Ladder

Optional Accessories

Spindle Speed – 8000/10000 rpm
32/40 Tools ATC
Spindle Taper BBT 40 from M-2212 to M-3215
Linear Scales for X, Y, & Z Axes
Coolant Through Spindle 20 Bar Pressure
Tool Length Measurement System
Work Piece Measurement System
Manual 90° Angle Head
Semi-Automatic 90° Angle Head
Auto 90° Angle Head
500 mm Extended Beam (Possible in some models only)*
(Recommended with 90° Angle Head)
4th Axis Rotary Tables
Column Riser 200/300 mm
Enclosed Guarding (Top Closed)
Door Interlock for safety
Zenμ – AI base accuracy enhancement feature (thermal compensation)
Siemens, Heidenhain & Fagor controllers are also available on request

Note

Note: The models from 2218 to 4223 are equipped with box guideways on the Z axis.

Note: Specifications and features are subject to change without prior notice. Please refer to the offer document, as it has precedence.

Table size: 3000×1500 mm

Maximum load: 10 tons

X axis travel: 3200 mm

Y axis travel: 1800 mm

Z axis travel: 1000 mm

Spindle motor (Mitsubishi): 22/26 kW

Speed: 6,000 (8,000, 10,000) rpm

Taper: BBT-50

Rapid rate (Mitsubishi): 15/15/12 m/min

Cutting feed rate: 1 – 10,000 mm/min

Standard Accessories

Mitsubishi/Fanuc with Crystal Keys for MOP
Spindle Speed – 6000 rpm with Oil Chiller
X & Y with Roller LM Guideways
Z Axis with Roller LM Guideways (M-2212 – 3215)
Z Axis with Box Guideways (M-2218 – 5223)
24 Tools Twin ARM Type ATC
Mobile MPG (Handheld wired unit)
Coolant Splash Guard (Top Open)
Two Chip Screw and One Slat Type Chip Conveyor with Bucket
Air Conditioner for Electrical Cabinet
Automatic Lubrication Unit
Coolant System
Spindle Air Blast
Work & Tower Lamp
Step Down Transformer
Auto Power Off
Maintenance Ladder

Optional Accessories

Spindle Speed – 8000/10000 rpm
32/40 Tools ATC
Spindle Taper BBT 40 from M-2212 to M-3215
Linear Scales for X, Y, & Z Axes
Coolant Through Spindle 20 Bar Pressure
Tool Length Measurement System
Work Piece Measurement System
Manual 90° Angle Head
Semi-Automatic 90° Angle Head
Auto 90° Angle Head
500 mm Extended Beam (Possible in some models only)*
(Recommended with 90° Angle Head)
4th Axis Rotary Tables
Column Riser 200/300 mm
Enclosed Guarding (Top Closed)
Door Interlock for safety
Zenμ – AI base accuracy enhancement feature (thermal compensation)
Siemens, Heidenhain & Fagor controllers are also available on request

Note

Note: The models from 2218 to 4223 are equipped with box guideways on the Z axis.

Note: Specifications and features are subject to change without prior notice. Please refer to the offer document, as it has precedence.

Table size: 4000×1500 mm

Maximum load: 13 tons

X axis travel: 4200 mm

Y axis travel: 1800 mm

Z axis travel: 1000 mm

Spindle motor (Mitsubishi): 22/26 kW

Speed: 6,000 (8,000, 10,000) rpm

Taper: BBT-50

Rapid rate (Mitsubishi): 15/15/12 m/min

Cutting feed rate: 1 – 10,000 mm/min

Standard Accessories

Mitsubishi/Fanuc with Crystal Keys for MOP
Spindle Speed – 6000 rpm with Oil Chiller
X & Y with Roller LM Guideways
Z Axis with Roller LM Guideways (M-2212 – 3215)
Z Axis with Box Guideways (M-2218 – 5223)
24 Tools Twin ARM Type ATC
Mobile MPG (Handheld wired unit)
Coolant Splash Guard (Top Open)
Two Chip Screw and One Slat Type Chip Conveyor with Bucket
Air Conditioner for Electrical Cabinet
Automatic Lubrication Unit
Coolant System
Spindle Air Blast
Work & Tower Lamp
Step Down Transformer
Auto Power Off
Maintenance Ladder

Optional Accessories

Spindle Speed – 8000/10000 rpm
32/40 Tools ATC
Spindle Taper BBT 40 from M-2212 to M-3215
Linear Scales for X, Y, & Z Axes
Coolant Through Spindle 20 Bar Pressure
Tool Length Measurement System
Work Piece Measurement System
Manual 90° Angle Head
Semi-Automatic 90° Angle Head
Auto 90° Angle Head
500 mm Extended Beam (Possible in some models only)*
(Recommended with 90° Angle Head)
4th Axis Rotary Tables
Column Riser 200/300 mm
Enclosed Guarding (Top Closed)
Door Interlock for safety
Zenμ – AI base accuracy enhancement feature (thermal compensation)
Siemens, Heidenhain & Fagor controllers are also available on request

Note

Note: The models from 2218 to 4223 are equipped with box guideways on the Z axis.

Note: Specifications and features are subject to change without prior notice. Please refer to the offer document, as it has precedence.

Table size: 3000×2100 mm

Maximum load: 13 tons

X axis travel: 3200 mm

Y axis travel: 2300 mm

Z axis travel: 1000 mm

Spindle motor (Mitsubishi): 22/26 kW

Speed: 6,000 (8,000, 10,000) rpm

Taper: BBT-50

Rapid rate (Mitsubishi): 15/15/12 m/min

Cutting feed rate: 1 – 10,000 mm/min

Standard Accessories

Mitsubishi/Fanuc with Crystal Keys for MOP
Spindle Speed – 6000 rpm with Oil Chiller
X & Y with Roller LM Guideways
Z Axis with Roller LM Guideways (M-2212 – 3215)
Z Axis with Box Guideways (M-2218 – 5223)
24 Tools Twin ARM Type ATC
Mobile MPG (Handheld wired unit)
Coolant Splash Guard (Top Open)
Two Chip Screw and One Slat Type Chip Conveyor with Bucket
Air Conditioner for Electrical Cabinet
Automatic Lubrication Unit
Coolant System
Spindle Air Blast
Work & Tower Lamp
Step Down Transformer
Auto Power Off
Maintenance Ladder

Optional Accessories

Spindle Speed – 8000/10000 rpm
32/40 Tools ATC
Spindle Taper BBT 40 from M-2212 to M-3215
Linear Scales for X, Y, & Z Axes
Coolant Through Spindle 20 Bar Pressure
Tool Length Measurement System
Work Piece Measurement System
Manual 90° Angle Head
Semi-Automatic 90° Angle Head
Auto 90° Angle Head
500 mm Extended Beam (Possible in some models only)*
(Recommended with 90° Angle Head)
4th Axis Rotary Tables
Column Riser 200/300 mm
Enclosed Guarding (Top Closed)
Door Interlock for safety
Zenμ – AI base accuracy enhancement feature (thermal compensation)
Siemens, Heidenhain & Fagor controllers are also available on request

Note

Note: The models from 2218 to 4223 are equipped with box guideways on the Z axis.

Note: Specifications and features are subject to change without prior notice. Please refer to the offer document, as it has precedence.

Table size: 4000×2100 mm

Maximum load: 13 tons

X axis travel: 4200 mm

Y axis travel: 2300 mm

Z axis travel: 1000 mm

Spindle motor (Mitsubishi): 22/26 kW

Speed: 6,000 (8,000, 10,000) rpm

Taper: BBT-50

Rapid rate (Mitsubishi): 15/15/12 m/min

Cutting feed rate: 1 – 10,000 mm/min

Standard Accessories

Mitsubishi/Fanuc with Crystal Keys for MOP
Spindle Speed – 6000 rpm with Oil Chiller
X & Y with Roller LM Guideways
Z Axis with Roller LM Guideways (M-2212 – 3215)
Z Axis with Box Guideways (M-2218 – 5223)
24 Tools Twin ARM Type ATC
Mobile MPG (Handheld wired unit)
Coolant Splash Guard (Top Open)
Two Chip Screw and One Slat Type Chip Conveyor with Bucket
Air Conditioner for Electrical Cabinet
Automatic Lubrication Unit
Coolant System
Spindle Air Blast
Work & Tower Lamp
Step Down Transformer
Auto Power Off
Maintenance Ladder

Optional Accessories

Spindle Speed – 8000/10000 rpm
32/40 Tools ATC
Spindle Taper BBT 40 from M-2212 to M-3215
Linear Scales for X, Y, & Z Axes
Coolant Through Spindle 20 Bar Pressure
Tool Length Measurement System
Work Piece Measurement System
Manual 90° Angle Head
Semi-Automatic 90° Angle Head
Auto 90° Angle Head
500 mm Extended Beam (Possible in some models only)*
(Recommended with 90° Angle Head)
4th Axis Rotary Tables
Column Riser 200/300 mm
Enclosed Guarding (Top Closed)
Door Interlock for safety
Zenμ – AI base accuracy enhancement feature (thermal compensation)
Siemens, Heidenhain & Fagor controllers are also available on request

Note

Note: The models from 2218 to 4223 are equipped with box guideways on the Z axis.

Note: Specifications and features are subject to change without prior notice. Please refer to the offer document, as it has precedence.

Machine Specifications

Specification	Unit	M-2212	M-2712	M-3212	M-2215	M-2715	M-3215	M-2218	M-3218	M-4218	M-5218	M-3223	M-4223	M-5223
TABLE
Table Size	mm	2000×1100	2500×1100	3000×1100	2000×1300	2500×1300	3000×1300	2000×1500	3000×1500	4000×1500	5000×1500	3000×2100	4000×2100	5000×2100
T-slots size	mm	7x22x150	7x22x150	7x22x150	7x22x150	7x22x150	7x22x150	7x22x180	7x22x180	7x22x180	7x22x180	11x22x180	11x22x180	11x22x180
Maximum Load	tons	4	6	8	4	6	8	8	10	13	14	13	13	14
TRAVEL
X Axis	mm	2200	2700	3200	2200	2700	3200	2200	3200	4200	5200	3200	4200	5200
Y Axis	mm	1200	1200	1200	1500	1500	1500	1800	1800	1800	1800	2300	2300	2300
Z Axis	mm	800	800	800	800	800	800	1000	1000	1000	1000	1000	1000	1000
SPINDLE
Spindle motor (Mitsubishi)	kW	15/18.5	15/18.5	15/18.5	15/18.5	15/18.5	15/18.5	22/26	22/26	22/26	22/26	22/26	22/26	22/26
Spindle motor (Fanuc)	kW	15/18.5	15/18.5	15/18.5	15/18.5	15/18.5	15/18.5	22/26	22/26	22/26	22/26	22/26	22/26	22/26
Speed	rpm	6000 (8000, 10000)	6000 (8000, 10000)	6000 (8000, 10000)	6000 (8000, 10000)	6000 (8000, 10000)	6000 (8000, 10000)	6000 (8000, 10000)	6000 (8000, 10000)	6000 (8000, 10000)	6000 (8000, 10000)	6000 (8000, 10000)	6000 (8000, 10000)	6000 (8000, 10000)
Taper	type	BBT-50	BBT-50	BBT-50	BBT-50	BBT-50	BBT-50	BBT-50	BBT-50	BBT-50	BBT-50	BBT-50	BBT-50	BBT-50
DISTANCES
Between two columns	mm	1300	1300	1300	1500	1500	1500	1900	1900	1900	1900	2400	2400	2400
Spindle nose to table surface	mm	200 – 1000	200 – 1000	200 – 1000	200 – 1000	200 – 1000	200 – 1000	200 – 1200	200 – 1200	200 – 1200	200 – 1200	200 – 1200	200 – 1200	200 – 1200
FEED RATE
Rapid Rate (Mitsubishi)	m/min	20/20/15	20/20/15	20/20/15	20/20/15	20/20/15	20/20/15	15/15/12	15/15/12	15/15/12	15/15/12	15/15/12	15/15/12	15/15/12
Rapid Rate (Fanuc)	m/min	20/20/15	20/20/15	20/20/15	20/20/15	20/20/15	20/20/15	12/12/12	12/12/12	12/12/12	12/12/12	12/12/12	12/12/12	12/12/12
Cutting feed rate	mm/min	1 – 10000	1 – 10000	1 – 10000	1 – 10000	1 – 10000	1 – 10000	1 – 10000	1 – 10000	1 – 10000	1 – 10000	1 – 10000	1 – 10000	1 – 10000
ATC
Tool change time-T to T (approx.)	sec	4.5 (Arm type)	4.5 (Arm type)	4.5 (Arm type)	4.5 (Arm type)	4.5 (Arm type)	4.5 (Arm type)	4.5 (Arm type)	4.5 (Arm type)	4.5 (Arm type)	4.5 (Arm type)	4.5 (Arm type)	4.5 (Arm type)	4.5 (Arm type)
Max. tool-diameter / length	mm	Ø 110/Ø 220 (Without adjacent tool)/length 350	Ø 110/Ø 220 (Without adjacent tool)/length 350	Ø 110/Ø 220 (Without adjacent tool)/length 350	Ø 110/Ø 220 (Without adjacent tool)/length 350	Ø 110/Ø 220 (Without adjacent tool)/length 350	Ø 110/Ø 220 (Without adjacent tool)/length 350	Ø 110/Ø 220 (Without adjacent tool)/length 350	Ø 110/Ø 220 (Without adjacent tool)/length 350	Ø 110/Ø 220 (Without adjacent tool)/length 350	Ø 110/Ø 220 (Without adjacent tool)/length 350	Ø 110/Ø 220 (Without adjacent tool)/length 350	Ø 110/Ø 220 (Without adjacent tool)/length 350	Ø 110/Ø 220 (Without adjacent tool)/length 350
Max. tool weight	kg	15	15	15	15	15	15	15	15	15	15	15	15	15
No. of Tools	Nos.	24	24	24	24	24	24	24	24	24	24	24	24	24
COOLANT & LUBRICATION
Coolant tank volume	L	600	600	600	600	600	600	640	640	640	640	640	640	640
Hydraulic tank volume	L	70	70	70	70	70	70	70	70	70	70	70	70	70
Lubrication Oil Volume	L	8	8	8	8	8	8	8	8	8	8	8	8	8
MISCELLANEOUS
Power required	KVA	50	50	50	50	50	50	50	50	60		50	60	60
Pressurized air	Bar	5-7	5-7	5-7	5-7	5-7	5-7	5-7	5-7	5-7	5-7	5-7	5-7	5-7
Hydraulics required	kg/cm²	70	70	70	70	70	70	70	70	70	70	70	70	70
Machine Weight (approx)	tons	–	22	–	27.4	30	32	–	31	35	–
Controller	type	Mitsubishi M80, Fanuc 0iMF	Mitsubishi M80, Fanuc 0iMF	Mitsubishi M80, Fanuc 0iMF	Mitsubishi M80, Fanuc 0iMF	Mitsubishi M80, Fanuc 0iMF	Mitsubishi M80, Fanuc 0iMF	Mitsubishi M80, Fanuc 0iMF	Mitsubishi M80, Fanuc 0iMF	Mitsubishi M80, Fanuc 0iMF	Mitsubishi M80, Fanuc 0iMF	Mitsubishi M80, Fanuc 0iMF	Mitsubishi M80, Fanuc 0iMF	Mitsubishi M80, Fanuc 0iMF
DRIVE OPTION
Direct Drive (DDS)	–	Opt.	Opt.	Opt.	Opt.	Opt.	Opt.	Opt.	Opt.	Opt.	Opt.	Opt.	Opt.	Opt.
Gear Drive	–	Opt.	Opt.	Opt.	Opt.	Opt.	Opt.	Std.	Std.	Std.	Std.	Std.	Std.	Std.
Belt Drive	–	Std.	Std.	Std.	Std.	Std.	Std.	–	–	–	–	–	–	–
GUIDEWAYS
Z Axis Guideways	–	LM Guideways	LM Guideways	LM Guideways	LM Guideways	LM Guideways	LM Guideways	Box Guideways	Box Guideways	Box Guideways	Box Guideways	Box Guideways	Box Guideways	Box Guideways

Our Other Range of Excellence

High-tech Products For Unmatched Performance

Megamill Series

Standard Accessories

Optional Accessories

Note

Standard Accessories

Optional Accessories

Note

Standard Accessories

Optional Accessories

Note

Standard Accessories

Optional Accessories

Note

Standard Accessories

Optional Accessories

Note

Standard Accessories

Optional Accessories

Note

Standard Accessories

Optional Accessories

Note

Standard Accessories

Optional Accessories

Note

Standard Accessories

Optional Accessories

Note

Standard Accessories

Optional Accessories

Note

Standard Accessories

Optional Accessories

Note

Accessories

Machine Specifications

Our Other Range of Excellence

CVM Series

Dynamill Series

SmartMill Series

TapMill Series

AutoMill Series

Unimill Series

V-Turn Series

H-Turn Series

Megamill Series

Traverse Mill Series

Creepgrind & Surfgrind Series
