Machine Specifications

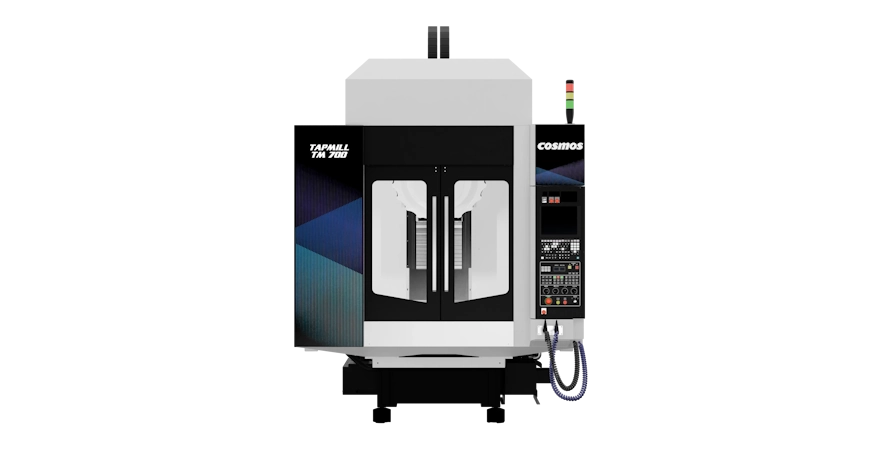

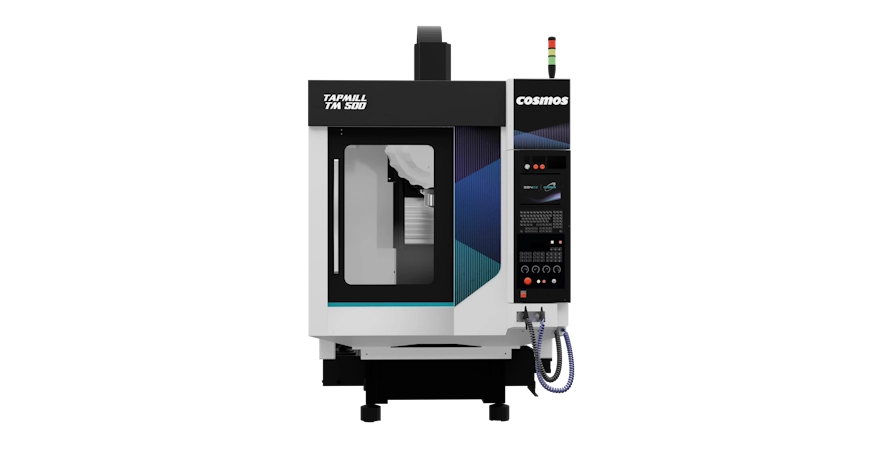

| Specification | Units | TM 500 | TM 700 |
|---|---|---|---|
| Travel | |||
| X-Axis | mm | 500 | 700 |
| Y-Axis | mm | 400 | 400 |
| Z-Axis | mm | 330 | 330 |
| Table | |||
| Spindle Nose to Table Surface | mm | 150-480 | 150-480 |
| Table Size | mm | 650 x 400 | 850 x 400 |
| No/Width/CD of T-Slots | mm | 3 x 14 x 125 | 3 x 14 x 125 |
| Max. Loading Capacity | kg | 250 | 250 |
| Spindle | |||
| Spindle Motor Output | kW | 3.7/5.5 | 3.7/5.5 |
| Spindle Max Speed | rpm | 12000 | 12000 |
| Spindle Taper | BBT-30 | BBT-30 | |
| Feed | |||
| Rapid Feed of X Axis* | m/min | 60 | 60 |
| Rapid Feed of Y Axis* | m/min | 60 | 60 |
| Rapid Feed of Z Axis* | m/min | 60 | 60 |
| Cutting Feed Rate | m/min | 20 | 20 |
| ATC | |||
| Tool Storage | nos | 21 | 21 |
| Max. Tool Diameter | mm | 80 | 80 |
| Max. Tool Length | mm | 200 | 200 |
| Max. Tool Weight | kg | 3 | 3 |
| Tool Change Time (Tool-to-Tool) | sec. | 1.5 | 1.5 |
| Accuracy | |||
| Positioning | mm | 0.01 | 0.01 |
| Repeatability (+/-) | mm | ± 0.003 | ± 0.003 |
| General | |||
| Floor Space (LxD) | mm | 1600 x 2390 | 2050 x 2390 |
| Weight | kg | 2400 | 2550 |
| Power Capacity | kVA | 10 | 10 |
