Machine Specification

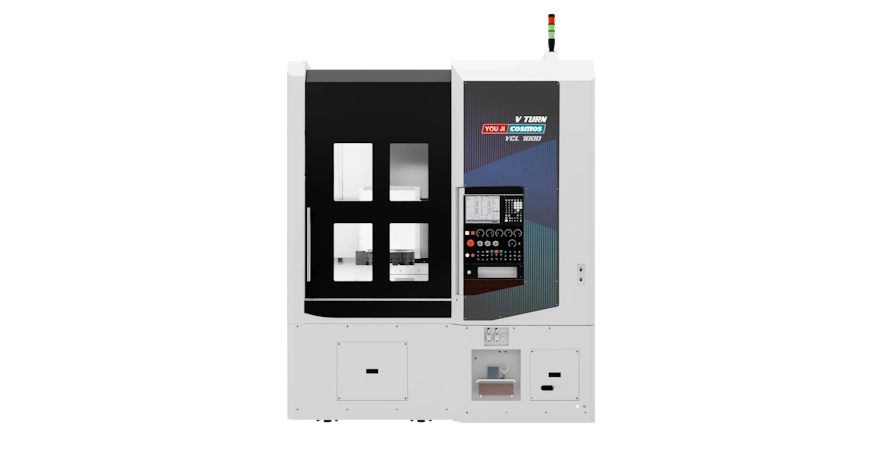

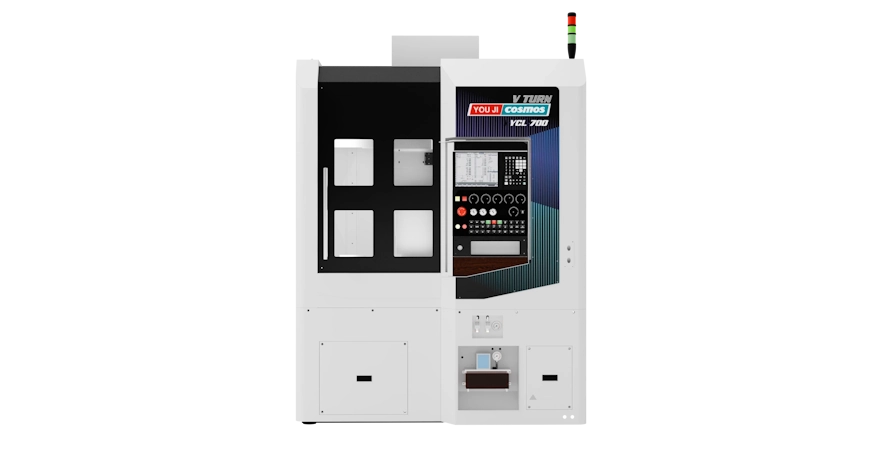

| Specifications | Units | YCL 600 | YCL 700 | YCL 850 | YCL 1000 |
|---|---|---|---|---|---|
| Capacity | |||||
| Max. Swing Diameter | mm | 650 | 800 | 1000 | 1200 |
| Swing Over Saddle | mm | 500 | 600 | 750 | 850 |
| Max. Turning diameter | mm | Ø 600 / L 120 | Ø 700 / L 120 | Ø 850 / L 120 | Ø 1000 / L 120 |
| Max. Turning Height | mm | 500 | 700 | 800 | 800 |
| Chuck Size Std. (Opt.) | inch | 15″ (18″) | 18″ (21″) | 21″ (24″) | 24″ (32″) |
| Traverse | |||||
| X-Axis | mm | -10/+305 | -10/+355 | -35/+430 | -35/+530 |
| Z-Axis | mm | 500 | 700 | 820 | 820 |
| Main Spindle | |||||
| Max. Spindle Speed* | rpm | 2500 | 2500 | 2500 | 2000 |
| Spindle Nose Taper | A2-8 | A2-11 | A2-11 | A2-11 | |
| Max. weight capacity of Spindle (with chuck) | kg | 500 | 1000 | 1000 | 1200 |
| Turret | |||||
| Type | – | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| No. of Stations STD. (OPT.) | 8 (12) | 8 (12) | 12 (8) | 12 (8) | |
| OD Tool Size | mm | 32 | 32 | 32 | 32 |
| Boring Bar Diameter | mm | 50 | 50 | 60 | 60 |
| Axis Drive | |||||
| Rapid Traverse X – Axis | m/min | 12 | 12 | 20 | 20 |
| Rapid Traverse Z – Axis | m/min | 24 | 24 | 20 | 20 |
| Accuracy (ISO-13041-2) | |||||
| Positioning Accuracy Full Stroke | mm | 0.010 | 0.010 | 0.010 | 0.010 |
| Positioning Repeatability | mm | 0.006 | 0.006 | 0.006 | 0.006 |
| Motor | |||||
| Spindle Motor – Fanuc/Mitsubishi | kW | 18.5 / 22 | 18.5 / 22 | 18.5 / 22 | 18.5 / 22 |
| Spindle Power – Siemens without GB | kW | 16 / 28 | 16 / 28 | 16 / 28 | 16 / 28 |
| Spindle Power – Siemens with GB | kW | – | – | 13 / 19 | 13 / 19 |
| Coolant | |||||
| Cutting Coolant Pump | 30 LPM@5 Bar | 30 LPM@5 Bar | 30 LPM@5 Bar | 30 LPM@5 Bar | |
| Base Flush Pump | 120 LPM@1 Bar | 120 LPM@1 Bar | 120 LPM@1 Bar | 120 LPM@1 Bar | |
| Others | |||||
| Machine Weight | kgs | 6000 | 7000 | 9500 | 10500 |
| Power Supply | kVA | 40 | 40 | 40 | 40 |
