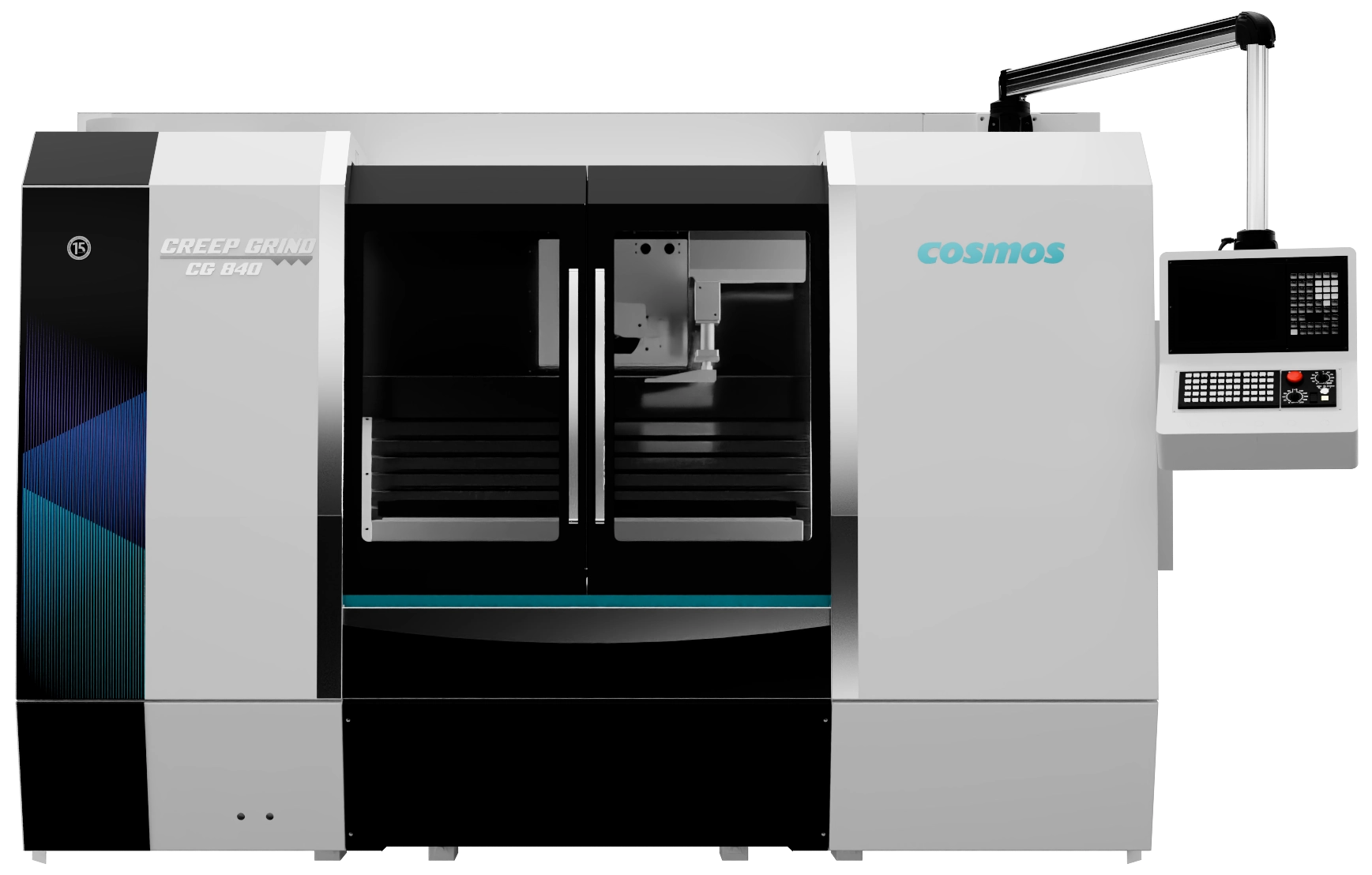

Machine Overview
Creep Feed Grinding is a precision grinding method where the grinding wheel carves a full-depth contour into the workpiece in a single, slow pass. This process is ideal for creating intricate shapes, profiles, and features that are challenging to achieve through conventional grinding methods.
- High Static and Dynamic Stability of the Machine Tool
- Infinitely Variable Spindle Speed
- Consistent Table Speed, especially in the Lower Speed Range
- High-pressure Cooling and Cleaning System

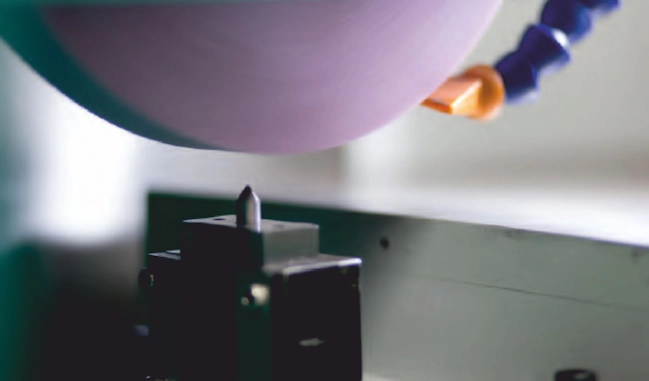

- Integrated Dressing Devices
- CNC Programmable
- Automatic Wheel Balancing
- High Power Spindle Motor
- Automatic Compensation for Wheel Dressing
HIGH MATERIAL
REMOVAL RATE
SHORT
CYCLETIME
REDUCED
MACHINE WEAR
LOW HEAT AT
WORKPIECE
ELIMINATE
MACHINING
LONGER
WHEEL LIFE
Additional Features
Stainless Steel Sill
Protector
Big Dual
Side Windows
Fully Enclosed
Guarding
Inbuilt Tool
Stronge Cabinet
1 Air and 3 Coolant
Nozzles
Copper Pipe
for Lubrication
Machine Specs
Grinding Area: 800 × 350 mm
Longitudinal Travel:Â 800 mm
Cross Travel:Â 350 mm
Vertical Travel:Â 300 mm
Max. Load on Table:Â 300 kg
Spindle Motor:Â 22 kW
Spindle Speed: 1000–3000 rpm
Grinding Wheel Size Max. (OD × Width × ID): 400 × 100 × 127 mm
Rapid Traverse X Axis:Â 10,000 mm/min
Rapid Traverse Y Axis:Â 5,000 mm/min
| Sr. No. | Machine Model | Length (l) | Travel (t) | Depth (d) | Height (h) |
|---|---|---|---|---|---|
| 1 | SG-7040 | 2755 | 3150 | 1975 | 2550 |
| 2 | SG-8040 | 3350 | 3750 | 2500 | 1950 |
| 3 | SG-1050 | 3530 | 4690 | 2475 | 2900 |
| 4 | SG-1260 | 3780 | 5100 | 2730 | 2900 |
| 5 | SG-1570 | 4825 | 6475 | 3305 | 3075 |
| 6 | SG-2070 | 6335 | 8500 | 3540 | 3100 |
Drive
| Longitudinal Hydraulic |
Vertical Servo Motor with Ball Screw |
Easy User Interface
Operator skill level and fatigue reduced by eliminating manual machine operation. The complete grinding is done in auto cycle by feeding the required data in our user-friendly interface HMI. However, in case any manual operation is specifically required, it can be done by using MPG mode.
Plunge Cycle
Plunge Grinding Cycle is used for slot or side face grinding operation. It can also be utilised for top face grinding when component width is lower than wheel width. Here cross axis is fixed, and only vertical axis will move downward after each table reversal.
Intermittent Traverse Cycle
In Intermittent Traverse Cycle, the cross axis will move further after each table reversal for surface grinding operation.
Continuous Traverse Cycle (OPT)
In Continuous Traverse Cycle, the longitudinal and cross axis will move simultaneously.
This feature is only available with machine having servo motor in cross axis.
MACHINING STABILITY ENSURED
Our machines are distinguished by the extraordinary power of our signature ribs, the cornerstone of strength and quality in our construction. These ribs are strategically positioned to fortify our machines, elevating their structural integrity and amplifying overall robustness.
For heavy-duty cutting tasks, our ribs are the secret to success. They stand out in enhancing torsional rigidity, expertly reducing vibrations, and virtually eliminating deformation. The outcome is a level of machining precision and reliability that’s second to none – a testament to the enduring quality and unwavering strength of our ribs. Place your trust in the bedrock of excellence; rely on our ribs to deliver.
BOOST YOUR PROFITABILITY BY
ACHIEVING THE MAXIMUM WITH EASE
It focuses on customised dashboards and tools that help the operator to simplify his daily activity. The overall feature and package can reduce the time lost due to the complexity of the controller GUI; as a result, Zenez can significantly increase the machine output and profitability. • 10.4-inch display or large 15-inch display.
- 10.4-inch display or large 15-inch display
- Multi-touch User Interface
- Fully functional vertical and horizontal soft-keys for non-touch usage
- Crystal Type
- Enhanced hardware to ensure reliability
